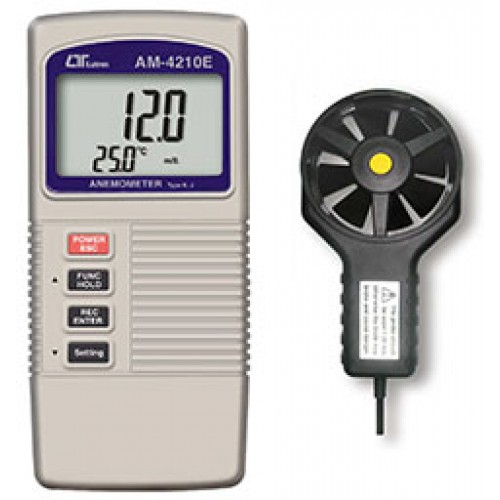

Thiết bị đo tốc độ gió, nhiệt độ AM-4210E
CHỨC NĂNG
1) Đo tốc độ gió
|
Measurement |
Range |
Resolution |
Accuracy |
|
m/s |
0.4 - 25.0 m/s |
0.1 m/s |
± (2%+0.2 m/s) |
|
km/h |
1.4 - 90.0 km/h |
0.1 km/h |
± (2%+0.8 km/h) |
|
mile/h |
0.9 - 55.9 mph |
0.1 mph |
± (2%+0.4 mile/h) |
|
knots |
0.8 - 48.6 knots |
0.1 knots |
± (2%+0.4 knots) |
|
ft/min |
80 - 4930 ft/min |
1 ft/min |
± (2%+40 ft/min) |
m/s - meters per second km/h - kilometers per hour ft/min - feet/per minute
mph - miles per hour knots - nautical miles per hour
(international knot) |
2) Đo nhiệt độ môi trường
|
Range |
0 ℃ to 50 ℃,32 ℉ to 122 ℉. |
|
Resolution |
0.1 degree |
|
Accuracy |
± 0.8 ℃/1.5 ℉ |
3) Đo nhiệt độ kiểu K/J
Sensor
Type |
Reso- lution |
Range |
Accuracy |
|
Type K |
0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.4 % + 0.8 ℃ ) |
|
-50.1 to -199.9 ℃ |
± ( 0.4 % + 1 ℃ ) |
|
0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.4 % + 1.5 ℉ ) |
|
-58.1 to -327.8 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
|
Type J |
0.1 ℃ |
-100.0 to 1100.0 ℃ |
± ( 0.4 % + 0.8 ℃ ) |
|
-50.1 to -199.9 ℃ |
± ( 0.4 % + 1 ℃ ) |
|
0.1 ℉ |
-58.0 to 2012.0 ℉ |
± ( 0.4 % + 1.5 ℉ ) |
|
-58.1 to -327.8 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
