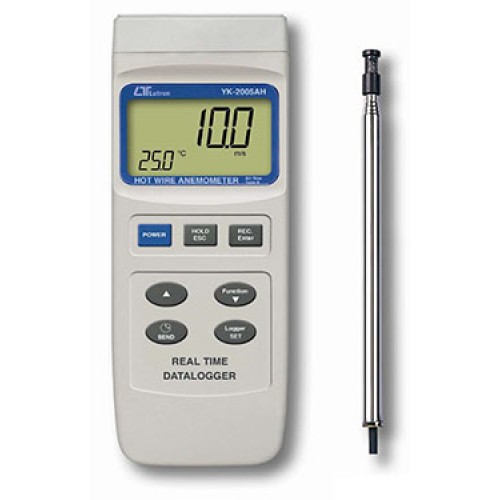

Thiết bị đo tốc độ gió, lưu lượng gió Lutron YK-2005AH
CHỨC NĂNG
1) Đo tốc độ gió
|
Measurement |
Range |
Resolution |
Accuracy |
|
m/S |
0.2 to 20.0 m/s |
0.1 m/S |
± ( 5% + a )
reading or
± ( 1% + a )
full scale |
|
Km/h |
0.7-72.0 km/h |
0.1 Km/h |
|
Mile/h |
0.5-44.7 mph |
0.1 Mile/h |
|
Knot |
0.4-38.8 knot |
0.1 Knot |
|
Ft/min |
40-3940 ft/min |
1 Ft/min |
|
@ a = 0.1 m/s, 0.1 km/h, 0.1 mile/h, 0.1 knot, 10 ft/min |
Note:
m/s - meters per second km/h - kilometers per hour ft/min - feet/per minute knot - nautical miles per hour mile/h - miles per hour (international knot) |
2) Đo lưu lượng gió
|
Measurement |
Range |
Resolution |
Area |
|
CMM (m^3/min.) |
0 to 36,000 m^3/min. |
0.001-1 |
0.001-30.0 m^3/min. |
|
CFM (ft^3/min.). |
0 to 1,271,200 ft^3/min. |
0.01-100 |
0.01-322.91 ft^3/min. |
3) Đo nhiệt độ
|
Measuring Range |
0 ℃ to 50 ℃/32 ℉ to 122 ℉ |
|
Resolution |
0.1 ℃/0.1 ℉ |
|
Accuracy |
± 0.8 ℃/1.5 ℉ |
4) Đo nhiệt độ K/J
Sensor
Type |
Reso-
lution |
Range |
Accuracy |
|
Type K |
0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.2 % + 0.5 ℃ ) |
|
-50.1 to -100.0 ℃ |
± ( 0.2 % + 1 ℃ ) |
|
0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.2 % + 1 ℉ ) |
|
-58.1 to -148.0 ℉ |
± ( 0.2 % + 1.8 ℉ ) |
|
Type J |
0.1 ℃ |
-100.0 to 1100.0 ℃ |
± ( 0.2 % + 0.5 ℃ ) |
|
-50.1 to -100.0 ℃ |
± ( 0.2 % + 1 ℃ ) |
|
0.1 ℉ |
-58.0 to 2012.0 ℉ |
± ( 0.2 % + 1 ℉ ) |
|
-58.1 to -148.0 ℉ |
± ( 0.2 % + 1.8 ℉ ) |
