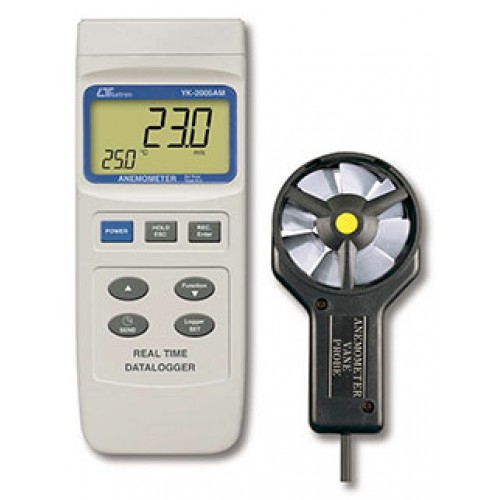

Thiết bị đo tốc độ gió, lưu lượng gió Lutron YK-2005AM
CHỨC NĂNG
1) Đo tốc độ gió
|
Measurement |
Range |
Resolution |
Accuracy |
|
m/S |
0.4 - 30.0 m/s |
0.1 m/S |
± ( 2%+0.2 m/S) |
|
Km/h |
1.4 - 126.0 km/h |
0.1 Km/h |
± ( 2%+0.8 Km/h) |
|
Mile/h |
0.9 - 78.3 mph |
0.1 Mile/h |
± ( 2%+0.4 Mile/h) |
|
Knots |
0.8 - 68.0 knots |
0.1 Knots |
± ( 2%+0.4 Knots) |
|
Ft/min |
79 - 6890 ft/min |
1 Ft/min |
± ( 2%+40 Ft/min) |
2) Đo lưu lượng gió
|
Measurement |
Range |
Resolution |
Area |
|
CMM (m^3/min.) |
0-999,900 m^3/min. |
0.001-100 |
0.001-9,999 m^3/min. |
|
CFM (ft^3min.). |
0-999,900 ft^3/min. |
0.001-100 |
0.001-9,999 ft^3/min. |
3) Đo nhiệt độ
|
Measuring Range |
0 ℃ to 50 ℃/32 ℉ to 122 ℉ |
|
Resolution |
0.1 ℃/0.1 ℉ |
|
Accuracy |
± 0.8 ℃/1.5 ℉ |
4) Đo nhiệt độ K/J
Sensor
Type |
Reso- lution |
Range |
Accuracy |
|
Type K |
0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.2 % + 0.5 ℃ ) |
|
-50.1 to -100.0 ℃ |
± ( 0.2 % + 1 ℃ ) |
|
0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.2 % + 1 ℉ ) |
|
-58.1 to -148.0 ℉ |
± ( 0.2 % + 1.8 ℉ ) |
|
Type J |
0.1 ℃ |
-100.0 to 1100.0 ℃ |
± ( 0.2 % + 0.5 ℃ ) |
|
-50.1 to -100.0 ℃ |
± ( 0.2 % + 1 ℃ ) |
|
0.1 ℉ |
-58.0 to 2012.0 ℉ |
± ( 0.2 % + 1 ℉ ) |
|
-58.1 to -148.0 ℉ |
± ( 0.2 % + 1.8 ℉ ) |
